If you want to buy low bed trailer to meet the transportation needs of heavy equipment, then this 13-meter 3-axle low flatbed semi-trailer will be your ideal choice.

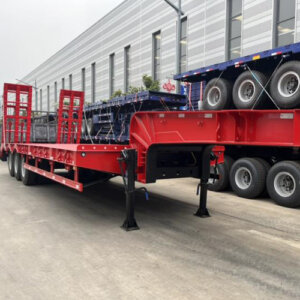

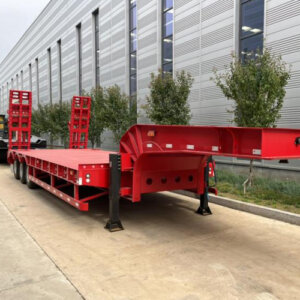

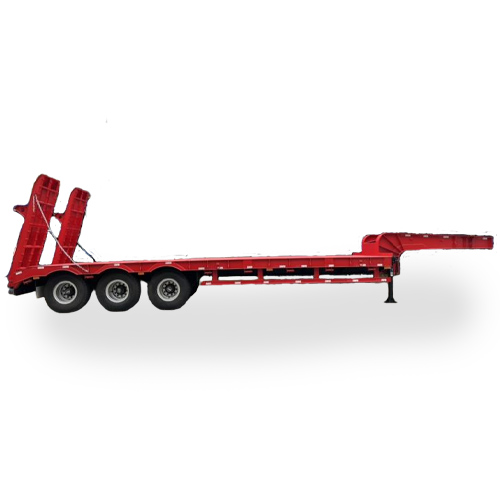

This 13-meter 3-axle low flatbed semi-trailer is specially designed for transporting large machinery and heavy equipment, such as excavators, bulldozers, loaders, etc. The vehicle has a sturdy structure, strong load-bearing capacity, and a long service life. It is suitable for construction projects, mining, transportation, and various heavy-duty logistics scenarios.
Product advantages
- The main beam is made of Q700 high-strength steel and features an H-shaped beam design with a reasonable structure, ensuring stability and reliability even under heavy loads.

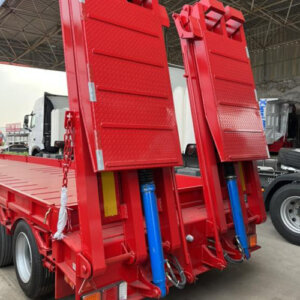

- It is equipped with two mechanical ladders with spring assistance, which support the easy loading and unloading of construction machinery and improve transportation efficiency.
- The height of the cargo platform is 1,150mm, which is convenient for loading and unloading large equipment. The surface is made of a 4mm anti-slip patterned steel plate to ensure that the equipment does not easily slide during transportation.
- Equipped with a dual-pipeline air brake system and WABCO brand emergency relay valve, paired with T30/30 air chambers, it is highly responsive, safe, and reliable.
- Equipped with 3.5-inch bolt-type traction pins, 28-ton manual outriggers, and 7-core sockets, it meets the towing standards of different countries and regions, ensuring smooth export.
- The entire vehicle surface is sandblasted to SA2.5 standard and sprayed with polyurethane paint. The total paint film thickness is ≥80 microns, which is rust-proof, wear-resistant, and suitable for various climate conditions.
|
Trailer Parameters |
|
| Length | 13,000mm |
| Width | 3,000mm |
| Overall height | 3,300mm |
| Height of the loading platform | 1,150mm |
| Payload | 60,000kg |
| Tare weight | 10500kg |
| Main beam | Material Q700. Fabricated “H” beam height 500mm, Top flange thickness 16mm, Middle web thickness 12mm, Bottom flange thickness 18mm |
| Side beam | 25# fabricated Hsteel 8mm-8mm-8mm |
| Platform | 4mm thick chequer plate with supporting channel |
| Kingpin | 3.5” bolted type kingpin |
| Rear ladder | 2 pcs Mechanical climbing ramps (with springs) |
| Welding standard | All welding is to be done by a qualified welder per the applicable national standard |
| Painting | Shot blast at Standard SA 2.5 before application of primer, polyurethane top coat. Total DFT not less than 80um |
| Suspension | Standard mechanical suspension |
| leaf spring | 6 pcs leaf spring 16mm*90mm*10pcs |
| Axle | 3pcs*16ton capacity Mingyue brand |
| Brake system | Dual line pneumatic brake, with hose and connector |
| Brake chamber | T30/30 spring brake chambers on all axles. |
| Air tank | 40L, 2 pcs, China |
| Emergency relay valve | WABCO heavy relay valve |
| Tire | Double coin brand, 825R20, 12pcs |
| Rim | 6.5-20 10 holes ISO, 12 pcs |
| Landing gear | 28T two-speed telescopic manual landing gear |
| Voltage | 24 Volt |
| Receptacle | 7-way socket standard, China |
| Front marker lamp | White LED |
| Side marker lamp | White & Red LED |
| Rear lamp | Red LED |
| Turn signal lamp | Amber LED |
| Reflector | Per customer requirement |
| Mud guard | Steel mud guard |
| Tool box | 1 pc |
