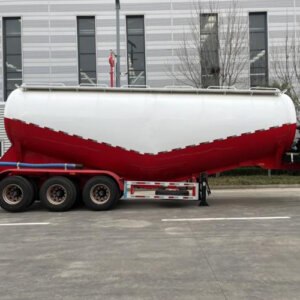

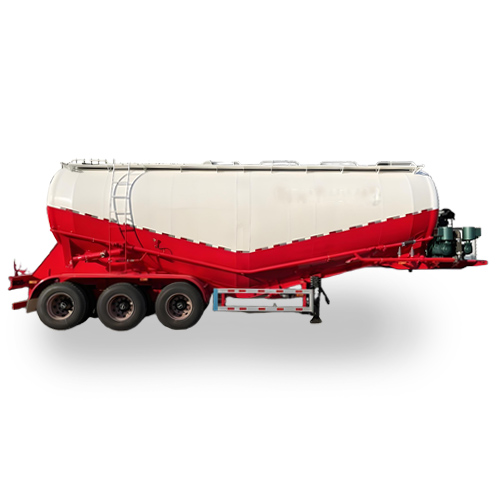

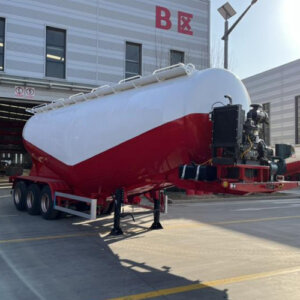

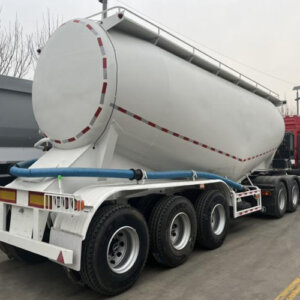

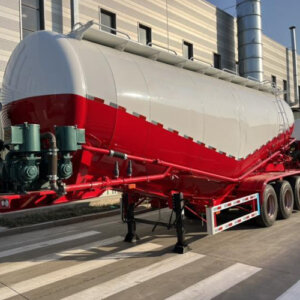

The 40 CBM Bulk Cement Tank Trailer is a large semi-trailer specially designed for the transportation of bulk cement. It has multiple advantages such as large capacity, lightweight, high strength, and efficient unloading, and is very suitable for cement plants, construction sites, and logistics transportation enterprises. This model adopts a classic V-shaped tank structure with a total volume of 40 cubic meters, reserving an additional 5% gas-phase space. This effectively prevents the sedimentation and clogging of cement during transportation and ensures the smoothness of pneumatic unloading.
The overall structure of the vehicle is reasonable. It not only has a large loading capacity but also significantly improves the efficiency of single-trip transportation, helping users significantly reduce unit transportation costs. The tank head is made of Q345 high-strength steel with a thickness of 4mm. The tank shell is made of 3 mm-thick T700 special steel. The welding process of the entire vehicle complies with national quality standards. The working pressure of the tank reaches 0.2MPa, and the test pressure is 0.3MPa. With a reasonable structural design and high-quality materials, the vehicle weighs only about 7.3 tons, can carry up to 40 tons of cement, and has a total mass of 47.3 tons, achieving true lightweight, high-strength, and efficient transportation.
|
Trailer Parameters |
|
| Length | 10,200mm |
| Width | 2,550mm |
| Height | 3,950mm |
| Kingpin location | 1,300mm from the front face of the front bolster |
| Axle spacer | 6,930mm+1,310mm+1,310mm |
| Landing gear location | 2,425mm behind the kingpin location |
| Payload | 40,000kg |
| Tare weight | Approx. 7,300kg |
| G.V.W.R. | Approx. 47,300kg |
| Type | V-shape |
| Volume | 40,000L+5% vapor |
| Dish ends | Q345 thickness=4mm |
| Shell | T700 thickness=3mm |
| Discharge valve | 4” butterfly valve |
| Kingpin | 90# Prefabricated Kingpin |
| Discharge pipe & hose | 4” pipe & hose with quick coupling |
| Manhole | 2 standard manholes, 500 mm diameter |
| Working pressure | 0.2Mpa |
| Test pressure | 0.3Mpa |
| Welding standard | All welding is to be done by a qualified welder per the applicable national standard |
| Painting | Shot blast at Standard SA 2.5 before application of primer, polyurethane top coat. Total DFT not less than 80um |
| Engine | TIANHE 4102 China |
| Air compressor | BOHAI:12.5m³ China |
| Suspension | mechanical suspension, leaf spring 13mmx90mm |
| Axle | Mingyue brand 150×150 square beam axle, 3pcs*13 ton capacity |
| Brake system | Dual line pneumatic brake, SAE hose and connector |
| Brake chamber | T30/30 spring brake system on 3 axles, China |
| Air tank | 40L, 2 pcs, China |
| Emergency relay valve | Wabco relay valve |
| Tire | Linglong brand, 12R22.5, 12 pcs. |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO,12 pcs. |
| Landing gear | 28T two-speed telescopic manual landing gear |
| Voltage | 24 Volt |
| Receptacle | 7-way socket SAE standard, China |
| Front marker lamp | White |
| Side marker lamp | White & Red |
| Rear lamp | Red |
| Turn signal lamp | Amber |
| Reflector | Per customer requirement |
| Wiring | Electric cable protected by PVC conduit on the main frame |
| Ladder | Equipped at the rear of the tank |
| Walkway | Anti-skid walkway from the rear to the first manhole |
| Mud guard | Steel mud guard |
| Spare wheel carriers | 1pcs |
| Tool box | 1 pc |
