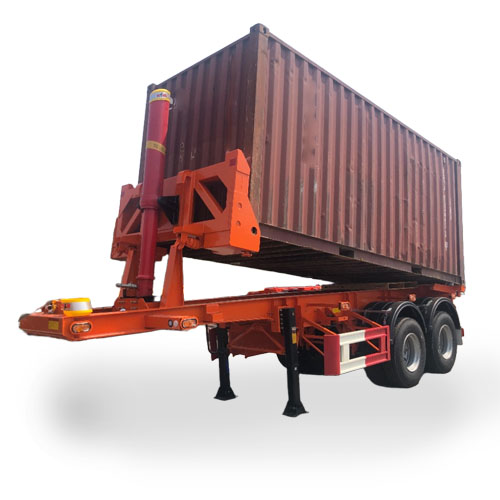

Looking for a reliable and efficient container tipper trailer for sale? Our 20FT Two Axles Container Tipper Trailer is purpose-built for fast and safe unloading of 20-foot containers, making it an excellent choice for ports, logistics yards, and bulk material transport operations.

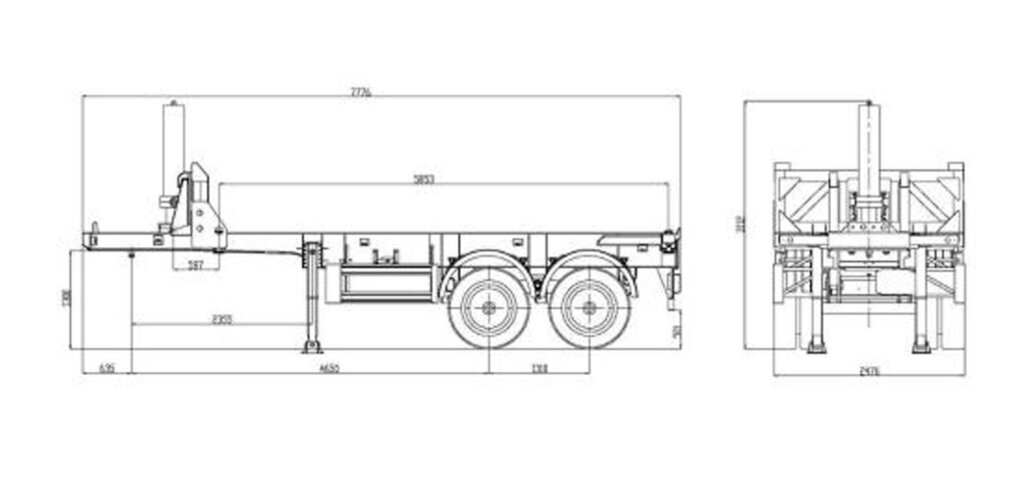

This model features a compact yet robust design with an overall length of 7,776 mm and a fifth wheel height of 1,300 mm, ensuring compatibility with a wide range of tractors. With a payload capacity of up to 30,000 kg, it’s engineered to handle heavy loads with ease, while maintaining excellent stability during tipping operations.
Equipped with a full HYVA hydraulic system, this trailer allows smooth and controlled lifting, significantly reducing unloading time and labor costs. Its FUWA 13T axles (2 sets) paired with mechanical suspension and 8 leaf springs provide solid support, even on uneven roads.
Durability is a key feature—fitted with 8 Linglong 12R22.5 tires, sturdy 9.0-22.5 rims, and a reinforced chassis, this container tipper trailer is built to last. The braking system includes WABCO brake valves and 30/30 chambers for both axles, ensuring responsive and reliable stopping power.
Additional features include a 30-ton GOLDENSTONE landing gear, JOST 50# kingpin, LED lighting system, toolbox, and spare tire carrier. The orange polyurethane coating (RAL2009) offers excellent resistance to weather and corrosion, extending the trailer’s service life.
If you’re looking for a 20FT container tipper trailer with two axles that combine performance, durability, and easy maintenance, this model is a smart investment for your transport needs.
|
Trailer Parameters |
|
| Overall Dimension (mm) | Length×width×height:7,776×2,476×3,112 |
| Fifth Wheel Height (mm) | 1300 |
| Payload (kg) | 30,000 kg (±5%） |
| Tire | Type: 12R22.5, equip 8pcs per chassis, Linglong brand |
| Rim | Type: 9.0-22.5, equip 8pcs per chassis |
| Axle | FUWA 13T, 2 sets, without ABS |
| Suspension | 2-axle mechanical suspension, with 8 leaf springs |
| Landing Gear | GOLDEN STONE 30T, double speed,19” |
| Hydraulic system | Full set of HYVA hydraulic system |
| Kingpin | JOST 50#, exchanged |
| Brake System | 30/30 type on two axles, WABCO brake valve |
| ABS | Non |
| Electrical System | 24V, LED lamp |
| Spare Tire Carrier | Equip 1 set per chassis without a spare tyre |
| Tool Box | 1 set |
| Paint | Primer + top coat, polyurethane paint |
| Color | Orange; RAL2009 |
