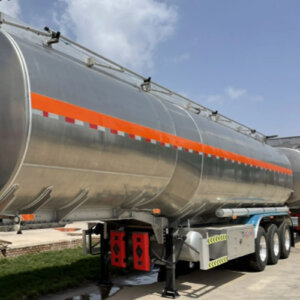

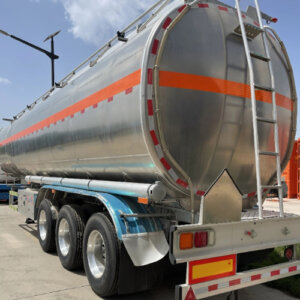

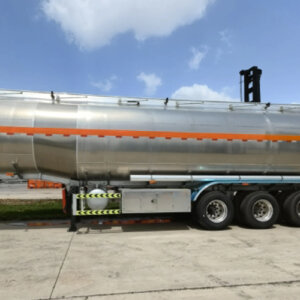

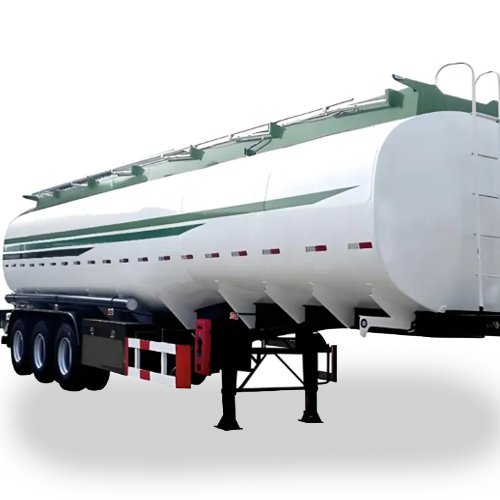

55 cbm (45,000-50,000 Liters) Diesel Fuel Tanker Semi Trailer constructed primarily from high-strength aluminum alloy or carbon steel, the tank body of this semi-trailer is engineered to withstand the rigors of transportation while minimizing weight. The use of aluminum alloy, in particular, offers significant weight savings compared to traditional carbon steel, resulting in improved fuel efficiency and increased payload capacity. The tanker semi-trailer features a three-axle configuration, which provides excellent stability and weight distribution, even when fully loaded. This design ensures smooth handling and maneuverability, reducing the risk of accidents and enhancing overall safety on the road. The suspension system, whether mechanical or air-based, further contributes to a comfortable and stable ride, even on uneven terrains.
Safety is a paramount consideration in the design of this diesel fuel tanker semi-trailer. It is equipped with a range of safety features, including emergency shut-off valves, anti-overflow devices, and explosion-proof manhole covers. These features work together to prevent leaks, spills, and other potential hazards, ensuring the safe transport of diesel fuel. Additionally, the semi-trailer complies with international safety standards and regulations, providing peace of mind to operators and regulatory authorities alike. In terms of functionality, the 55 cbm diesel fuel tanker semi-trailer offers a large storage capacity, allowing for the transport of significant volumes of fuel in a single trip. This reduces the number of trips required, thereby lowering transportation costs and increasing operational efficiency.
|
Trailer Parameters |
|
| SIZE | 11500*2500*3900mm (customizable) |
| Tare weight (kg) | 9800 (depends on final configuration) |
| Axles | 13/16/20 Ton. Axle amount optional like 2/3/4axles …, Axle brand optional like SAF /FUWA/BPW, etc |
| Landing Gear | 28t Heavy Duty Landing Gear. Brand optional FUWA/JOST, etc. |
| Max Loading Capacity (kg) | 60000 （customizable) |
| Electrical system | 1. Voltage: 24V waterproof 2. Receptacle: 7 ways (7 wire harness); LED light ( standard rear light, turn light, rear reflector,
side light, side reflector, etc.) |
| ABS System | None or installed as per your requirement. |
| Brake System | Dual line brake system, Air chamber T30/30,
3 X 40L gas storage drums |
| Leaf Spring | 90(w)mm*13/16(thickness)mm*10(layer) |
| Main Beam | Q345B / T700 Steel Height 500mm
upper plate is 14mm, down plate is 16mm, middle plate is 8mm. (customizable) |
| Suspension | Mechanical Suspension Air Suspension(American or German) |
| Color | As per customer requirement |
| Rim | 9.00-22.5/8.00-20/8.50-20 |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20(Brand optional) |
| Spare Wheel Bracket | 1 piece of Spare Wheel Bracket |
| Tool box | 1 set of standard toolbox equipped with 1 Tire spanner, 1 gudgeon sleeve, and 1 cranking bar |
| King Pin | 2″(50mm)or3.5″(90mm) JOST or other brand optional |
OUR FACTORY
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
