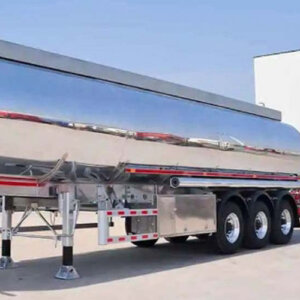

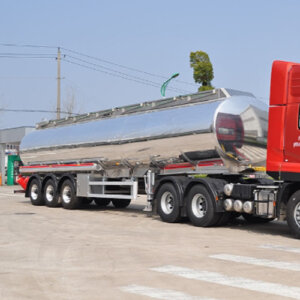

The tank body of the 3 Axles Stainless Steel Diesel Oil Transport Semi Trailer Oil Tanker Trailer is made of 304 or 316L stainless steel, and its corrosion resistance is improved by more than 70% compared with carbon steel. It can directly transport diesel, edible oil, chemical liquids, and other media without inner coating, avoiding the risk of medium contamination caused by coating peeling from the source.
The 3-axis layout optimizes the axle load distribution to keep the single-axis load within the range of 13 to 16 tons. With aluminum alloy wheels and low rolling resistance tires, the vehicle’s self-weight is reduced by 1.5 to 2 tons compared to carbon steel models. Taking a 45-cubic-meter tank as an example, it can carry an additional 1.8 tons of diesel in a single trip. Calculated based on an annual operation of 200,000 kilometers, the annual income increase exceeds 200,000 yuan.
In terms of safety configuration, it is equipped with dual-circuit pneumatic braking and an EBS electronic braking system as standard, reducing the braking response time to 0.3 seconds. Combined with the anti-rollover stability system, the rollover critical Angle under full load reaches 32°, which is 15% higher than the industry standard. Four anti-wave plates are set inside the tank to reduce the liquid impact force by 60%. Combined with the dual sealing design of the top breather valve and the bottom discharge valve, the risk of transportation leakage is reduced to less than 0.02%.
|
Trailer Parameters |
|
| Overall Dimension | (L*W*H) 11500*2500*3800mm |
| Volume | 40m³ |
| Axle | 3 axle 13T Fuwa Brand |
| Tare weight | 10500KG |
| End plate | Q235/6mm steel sheet |
| Tire | 12.00R20 12pcs |
| Tank body | Q235/4mm steel |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Manhole cover | 500mm manhole cover 8 sets |
| Steel Spring | 10/10/10 leaf spring suspension |
| Rims | 9.0, 12 pieces |
| Suspension system | Mechanical Suspension |
| Electrical system | voltage:24V 2.Receptacle:7ways(7wire harness) |
| Landing gear | Fuwa brand two-speed, manual operating , heavy-duty landing gear 28t |
| Tool box | one piece |
| Discharge pipe | 4”seamless steel tube,8pcs |
| Discharge valve | 4”disc valve,8pcs |
OUR FACTORY
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
