As a trusted Flatbed Trailer Supplier, we focus on providing high-quality and heavy-duty flatbed trailers for global logistics, freight transportation, and infrastructure projects. Whether you need to transport containers, building materials, steel coil, or agricultural machinery equipment, our flatbed trailers can provide you with a stable and safe transportation experience.
The entire vehicle is made of high-strength steel, and the chassis structure has been reinforced, featuring excellent load-bearing capacity and fatigue resistance. The standard configuration covers regular sizes such as 20 feet, 40 feet, and 45 feet, supports 2-axle or 3-axle structures, and can be equipped with loading accessories such as container locks, rod holes, or detachable side rails according to transportation requirements.
We offer direct supply prices from the source factory, ensuring quality while helping customers save costs. Support custom axle brands, suspension types, tire specifications, color spraying, etc., to meet the usage standards of different countries and regions.
As a Chinese flatbed trailer supplier with many years of export experience, we offer fast delivery, complete customs declaration documents, and after-sales support to help you efficiently expand your transportation business or upgrade your existing fleet.
Choose us, choose a truly reliable and practical flatbed semi-trailer to make your freight transportation more worry-free and efficient.
|
Trailer Parameters |
|
| Overall Dimensions (mm) | 12,500 × 2,500 × 1,560 |
| Kingpin | JOST 50# |
| Landing Gear | JOST, two-speed, linked type |
| Tires & Rims | Chengshan 12R22.5 × 12 pcs; Steel Rims 9.0-22.5 × 12 pcs |
| Axles | FUWA 13T × 3 axles |
| Brake Chambers & Relay Valve | 4 double + 2 single chambers; Shunanda relay valve |
| Leaf Springs | 10 pcs × 6 sets |
| Suspension | Tandem mechanical suspension |
| Main Beam | 500 mm height; Upper flange 14 mm, Web 8 mm, Lower flange 16 mm |
| Floor Plate | 3 mm checkered steel plate |
| Cross Beams | 10# channel steel |
| Side Beams | 16# channel steel |
| Twist Locks | 12 pcs; capable of loading one 40FT container or two 20FT containers |
| Toolbox & Spare Tire Carrier | 1 set each |

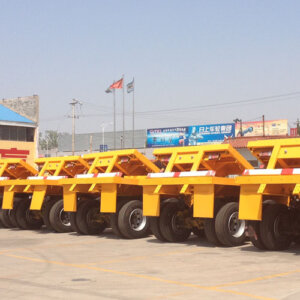

OUR FACTORY
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
