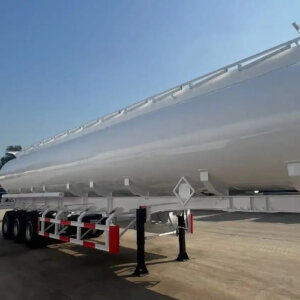

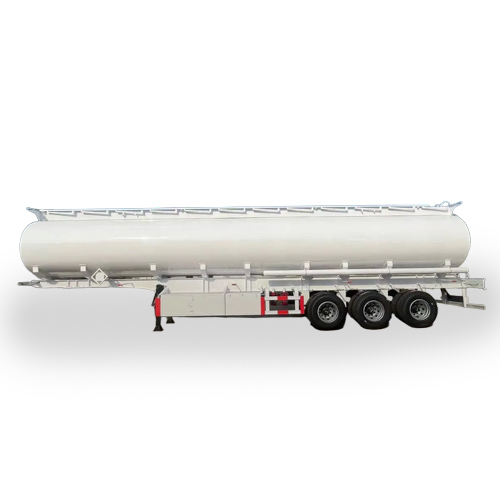

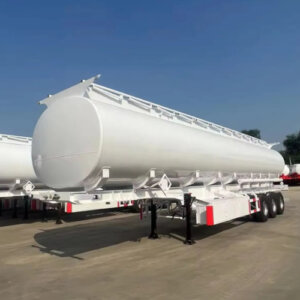

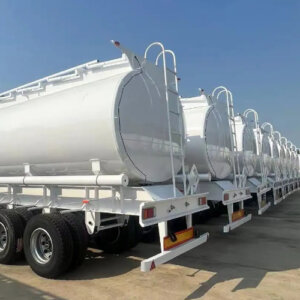

42000 Liters Diesel Oil 3 Axles Fuel Tanker Semi Trailer is a large transport equipment designed specifically for transporting liquid fuels such as diesel. The tank is mostly made of high-strength carbon steel or aluminum alloy, which is resistant to corrosion and impact. It can ensure the safety of diesel during transportation.
The three-axis design provides stable support and strong load-bearing capacity, which can adapt to various road conditions and transportation requirements. The reasonable wheelbase and suspension system design ensure the stability of the semi-trailer when driving at high speeds and turning. High-quality materials and exquisite manufacturing techniques ensure semi-trailers’ durability and long service life.
It is equipped with a complete system of oil inlet and outlet pipelines and valves, which facilitates the management during the loading, unloading, and transportation of diesel. Safety devices include emergency shut-off valves, anti-overflow devices, etc., to ensure that the oil circuit can be quickly cut off in emergencies and prevent diesel leakage. Auxiliary equipment, such as manhole covers and breather valves, is used for the maintenance and inspection of the tank, as well as to balance the pressure inside and outside the tank.
The design and manufacture of this semi-trailer comply with international and domestic safety standards to ensure safety during transportation. Adopt environmentally friendly materials and processes to reduce the impact on the environment. Meanwhile, it is equipped with a leak-proof device to prevent diesel leakage from polluting the soil and water sources.
Fuel Tanker Semi Trailer Parameters |
|
SIZE | 10800*2500*3850mm |
Axle | 2/3/4 Pcs, 13/16/20T |
Payload | 28T – 70 tons |
Volume | 28000-75000L |
Tank /Thickness | 5/6mm |
GVW(kg) | 40000 |
Main Beam | Q355 Carbon steel material |
Handrail | Folding type |
Suspension | Mechanical/Air/Bogie Suspension |
Axle Brand | BPW/FUWA/DERUN |
Tire | 11.00R20,12R22.5,315/80R22.5 |
Landing Leg | JOST E100/AC300 |
Brake system | 6pcs T30/30+T30 Brake Chambers
WABCO relay valve |
Painting | Powder spraying |
King Pin | JOST 2″ or 3.5 ” Bolt-in/welding Type |

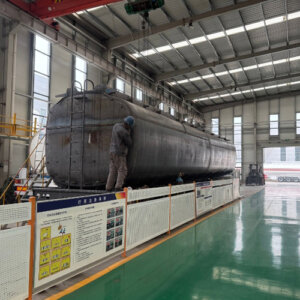

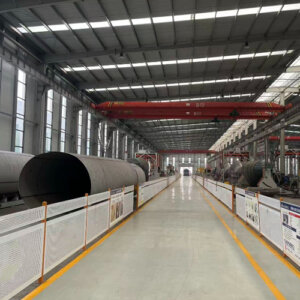

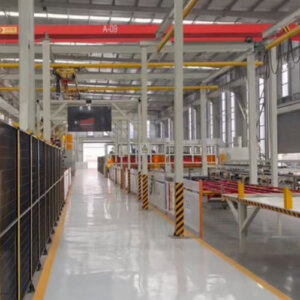

OUR FACTORY
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
