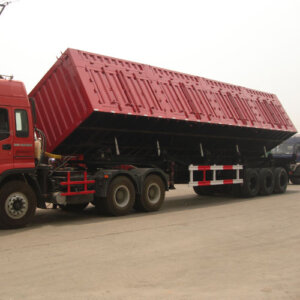

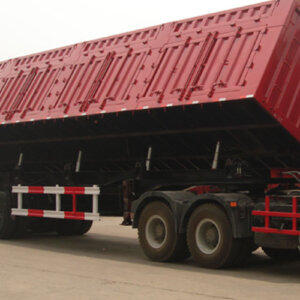

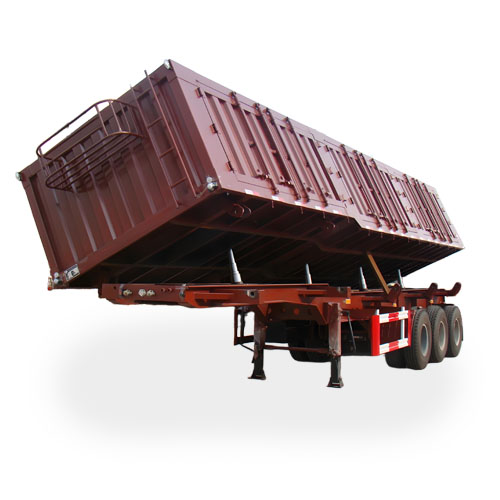

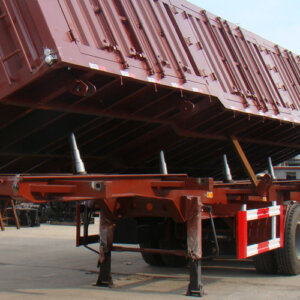

If you’re looking for a Side Dumper Trailer for Sale that combines durability and unloading efficiency, this high-quality model is a great choice. Whether transporting sand and gravel, coal, ores, or construction waste, it can provide an efficient and safe transportation experience under various working conditions.
This model features a high-strength steel frame and is equipped with a box-shaped cargo compartment structure, offering a larger loading space. The hydraulic side-tipping system is used to achieve rapid and smooth lateral unloading, which is especially suitable for operation scenarios with limited space or uneven ground, effectively improving unloading efficiency and reducing operation time.
The entire vehicle is equipped with a reinforced suspension and heavy-duty axles, capable of withstanding high-intensity operations during long-distance transportation. Compared with traditional rear-tipping models, the side-tipping design can effectively reduce the risk of rollover during the tipping process and enhance operational safety.
As a professional Chinese trailer manufacturer, we offer factory-direct prices, support customization on demand, and have export qualifications to serve customers worldwide. If you are interested in our trailer, please contact us!
|
Trailer Parameters |
|
| Main Beam | Height 500mm, upper flange 14mm, lower flange 16mm, web plate 8mm |
| Floor Plate | 3mm thick flat bottom, fully welded |
| Side Beam | 16# channel steel |
| Top Edge Beam | 14# channel steel |
| Toolbox | 1 set |
| Spare Tire Carrier | 2 sets |
| Brake Chambers | Four double + two single |
| Landing Gear | 28T |
| Rim Size | 8.0-20, 12 pieces |
| Tire | Triangle steel radial tire 11.00R20, 12 pieces |
| Axle | FUWA 13T, 3 axles (Guangdong FUWA brand) |
| Kingpin | 90# bolted type |
| Leaf Spring | 10 pcs per axle |
| Suspension | Standard mechanical suspension |
| Lifting Cylinder | Diameter 150mm × 4 sets |
| Shifting Cylinder | None |
OUR FACTORY
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
