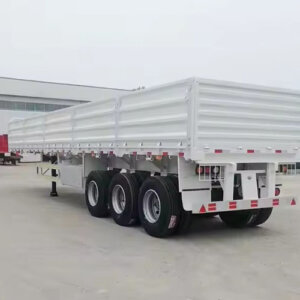

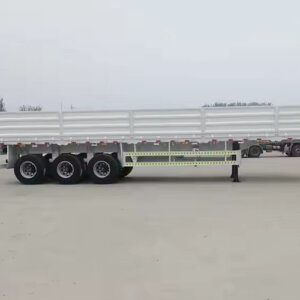

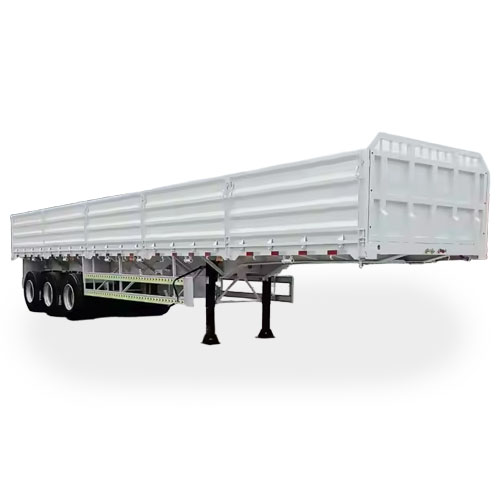

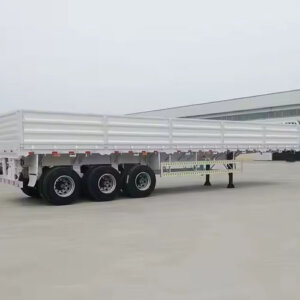

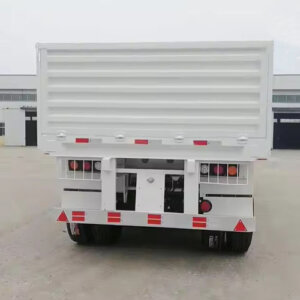

If you are looking for a durable Side Wall Semi Trailer for Sale, this model will be a good choice. It is highly flexible and suitable for various cargo transportation scenarios.
The entire vehicle is welded with thickened high-strength steel, featuring a solid structure and the ability to withstand heavy-load transportation under complex road conditions. The detachable or foldable design of the side panels not only provides excellent protection for the goods during transportation but also facilitates lateral loading and unloading, enhancing operational efficiency. It is particularly suitable for loading irregularly shaped or palletized goods.
We offer a variety of axle configurations (2-axle, 3-axle) and size customization services. The height of the side panels can also be flexibly adjusted according to customer requirements to meet the transportation needs of different markets and applications.
As an experienced Chinese trailer manufacturer, we support factory-direct prices, fast delivery, and export customization services. Every trailer undergoes strict quality inspection to ensure strong stability, low maintenance cost, and long service life.
Choose a flatbed semi-trailer that can truly adapt to various freight scenarios to make your logistics transportation more efficient and reassuring. Get detailed quotations and customized solutions immediately!
|
Trailer Parameters |
|
| Tare Weight | About 8200kg |
| Loading Capacity | 50T |
| Axle Weight Load | 13T |
| Axle number | Three |
| Axle specs. | FUWA Brand |
| Suspension | Common mechanical Suspension |
| Tires | 12R22.5 |
| Tire number | 12 pieces |
| King Pin | JOST (2.0inch or 3.5inch) traction pin bolts type |
| Dimensions (LxWxH) |
12500×2500×2860mm(outside dimension)
Side wall height is 600mm |
| Support legs | Chinese brand 28T |
| Rim | 9.00-22.5 |
| Steel Spring | 10 pieces per axle |
| Spare Tire Carriers | 2 pieces |
| The material of Main beam |
The height of the beam is 500 mm, the upper plate is 14mm, the down plate is 16mm, middle plate is 8mm. |
| Platform plate | 3mm thickness Plate |
| Emergency brake valve | WABCO VALVE |
| Brake Chamber | Four double and two single chambers |
| Electrical Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
| Side marker lamp | Orange |
| Rear lamp | Red |
| Turn signal lamp | Orange |
| Painting | Can choose freely |
| Marking | According to the requirements of the buyer |
OUR FACTORY
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
