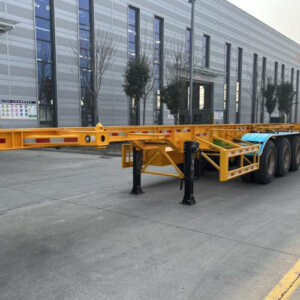

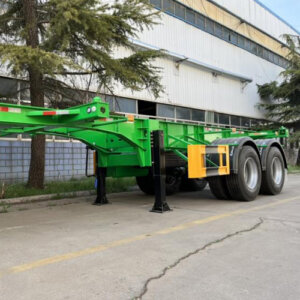

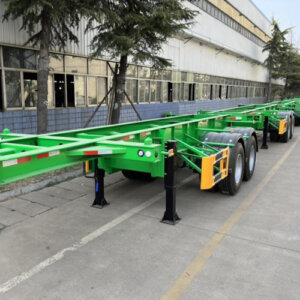

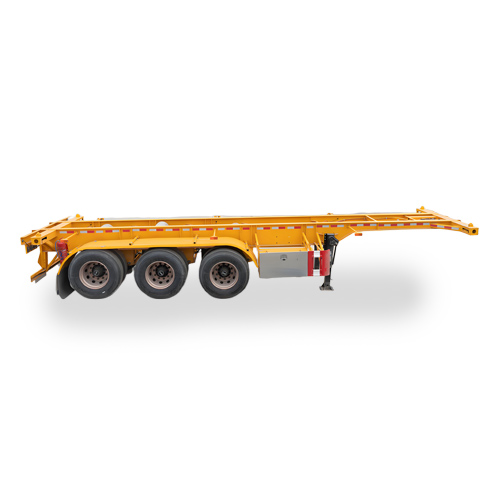

The 3-axle container skeletal semi trailer adopts high-strength steel to construct a frame-type chassis. By optimizing the I-beam section structure (such as the flange plate design of 14mm at the top and 16mm at the bottom) and the automatic submerged arc welding process, while ensuring the torsional rigidity of the main beam, a 10% to 15% reduction in self-weight compared to traditional models.
Take a typical 40-foot model as an example. Its no-load weight can be controlled within 6.5 tons. Combined with a three-axle 13-ton class axle configuration, the total load capacity exceeds 50 tons, significantly increasing the proportion of net weight of goods in a single trip and directly reducing fuel consumption and toll costs per ton-kilometer.
The twist lock device supports the rapid fixation of 1×20-foot, 2×20-foot, or 1×40-foot containers. Some high-end models are equipped with hydraulic lifting systems, which can complete the transshipment of containers of different specifications within 10 minutes.
|
Trailer Parameters |
|
| Length | 12,500mm |
| Width | 2,480mm |
| Height | 1,480mm |
| Kingpin location | 700mm from the front face of the front bolster |
| Axle spacer | 7,560mm+1,310mm+1,310mm |
| Landing gear location | 2,400mm behind the kingpin location |
| Payload | 40,000kg |
| Tare weight | Approx. 5,800kg |
| G.V.W.R. | Approx. 45,800kg |
| USE | 1*20’’(Container)、2*20’’(Container)、1*40’’(Container) |
| Main beam | Material Q700. Fabricated “H” beam height 500mm, Top flange thickness 14mm, Middle web thickness 8mm, Bottom flange thickness 16mm |
| Kingpin | 2” SAE Kingpin, bolted in type |
| Twist lock | 12 sets of twist locks |
| Welding standard | All welding is to be done by a qualified welder per the applicable national standard |
| Painting | Shot blast at Standard SA 2.5 before application of primer, polyurethane top coat. Total DFT not less than 80um |
| Suspension | Mechanical suspension, leaf spring 13mmx90mm |
| Axle | Mingyue 150×150 square beam axle, 3pcs*13 ton capacity |
| Brake system | Dual line pneumatic brake, SAE hose and connector |
| Brake chamber | 6 units T30/30 spring brake chambers |
| Air tank | 40L, 2 pcs, China |
| Emergency relay valve | WABCO relay valve |
| Tire | Linglong brand, 12R22.5, 12 pcs |
| Rim | 9.00-22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Landing gear | JTJS brand 28T two-speed telescopic manual landing gear |
| Voltage | 24 Volt |
| Receptacle | 7-way socket SAE standard |

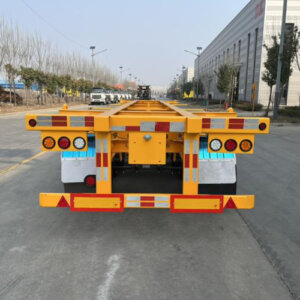

| Front marker lamp | White |
| Side marker lamp | White & Red |
| Rear lamp | Red |
| Turn signal lamp | Amber |
| Reflector | Per customer requirement |
| Mud guard | Steel mud guard |
| Spare wheel carriers | 1 pcs |
| Tool box | 1 pc |
