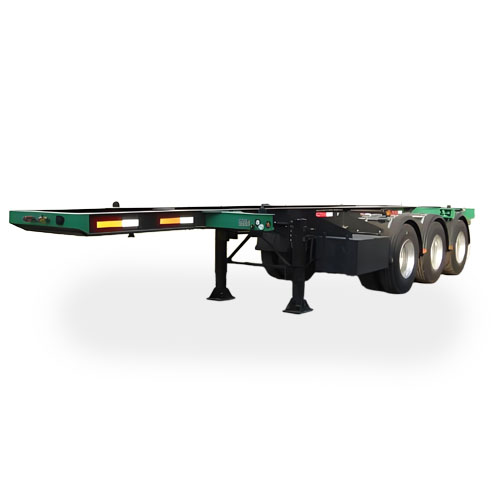

If you’re searching for a skeleton chassis for sale that delivers both strength and reliability, our 20-foot three-axle straight-frame chassis is a good choice.
The total length of the vehicle is 7,460mm. It features a compact structure and a stable center of gravity, making it convenient for daily loading and unloading operations and particularly suitable for high-frequency logistics use. The vehicle weighs approximately 4,600 kilograms, has a maximum load capacity of 30,000 kilograms, and a total mass of 34,600 kilograms, ensuring high transportation efficiency.
This skeleton vehicle is equipped with three 13-ton axles and a reinforced mechanical suspension system and is paired with 12 high-quality 11R22.5 tires, featuring excellent road adaptability and durability. The braking system adopts WABCO brand valve bodies and 30/30 air chambers for the rear two shafts, effectively ensuring braking safety.
The vehicle is also equipped with a JOST 2.0 “replaceable saddle pin, which is compatible with various main vehicle traction heads. The height of the towing pin and the overall vehicle height can be adjusted according to the towing vehicle to ensure stable and safe operation. Other practical configurations include 30-ton outriggers, LED lighting systems, 4 container locks, anti-corrosion polyurethane coating (color customizable), toolboxes, spare tire racks, etc.
If you are considering expanding your container transportation fleet, this 20-foot frame vehicle not only has a solid structure and complete functions but also enjoys the advantage of factory-direct sales price. It is a reliable and cost-effective choice.
|
Trailer Parameters |
|
| Overall Dimension (mm) | length×width×height:7,460×2,480×H1mm（The height will be adjusted according to the tractor specification） |
| Fifth Wheel Height (mm) | The height will be adjusted according to the tractor’s specifications |
| Tare Weight (kg) | 4,600 kg（±5%） |
| Payload (kg) | 30,000 kg（±5%） |
| Gross weight (kg) | 34,600 kg（±5%） |
| Tire | Type: 11R22.5, equipped with 12 pieces per chassis, a famous brand from China, optioned by the factory |
| Rim | Type: 8.25-22.5, equip 12pcs per chassis |
| Axle | 13T, 3 sets, without ABS |
| Suspension | 3-axles enforced mechanical suspension |
| Landing Gear | 30T |
| Kingpin | JOST 2.0”, exchanged |
| Brake System | 30/30 type on rear 2 axles, WABCO brake valve |
| ABS | Non |
| Electrical System | 24V, LED lamp |
| Spare Tire Carrier | Equip 1 set per chassis |
| Tool Box | 1 set |
| Container lock | 4pcs |
| Paint | Primer + top coat, polyurethane paint |
| Color | By customer’s requirement. |
