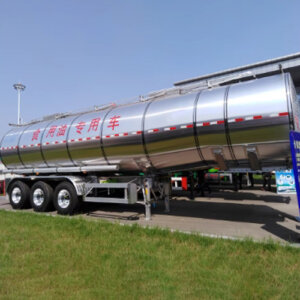

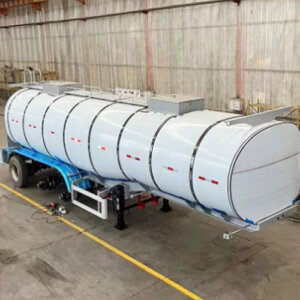

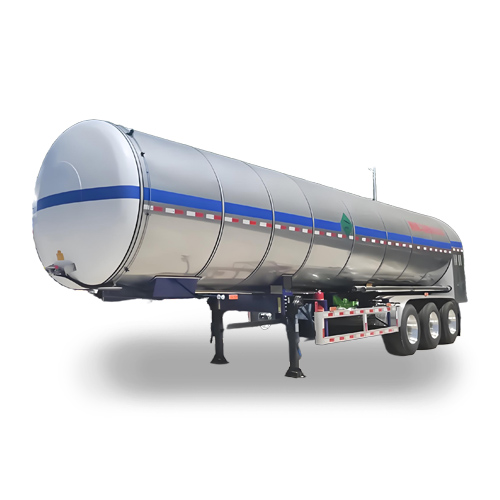

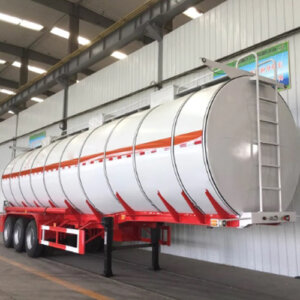

3 Axle 50000L Aluminum Alloy Tank/Tanker Semi Trailer is a modern semi-trailer specially designed for efficient liquid cargo transportation. Its core highlight lies in the deep integration of lightweight materials, safety technology, and large-capacity design. It applies to the transportation needs of multiple scenarios, such as fuel oil, chemical products, and food-grade liquids. This model features a tank made of high-strength aluminum alloy, which reduces its self-weight by approximately 30% to 40% compared to traditional carbon steel structures. While ensuring a super-large volume of 50,000 liters, it significantly improves fuel economy and payload capacity, making it particularly suitable for long-distance transportation and logistics scenarios with strict requirements for load efficiency. Its three-axis layout ensures the vehicle’s stability and handling in complex road conditions by optimizing the axle load distribution and the air suspension system (or optional mechanical suspension). Combined with the dual-circuit air braking and ABS/EBS electronic braking system, it further enhances driving safety.
In terms of safety configuration, multiple anti-wave plates are added inside the tank to suppress the shaking of the liquid. An emergency shut-off valve and an overflow protection device are equipped at the bottom to ensure that the liquid flow is quickly cut off and leakage is prevented in an emergency. For different transportation media, the tank material can be customized and selected (such as food-grade aluminum alloy or corrosion-resistant coating), and international safety standards (such as ADR, DOT, etc.) must be strictly followed to meet the global market access requirements. In addition, the natural anti-corrosion property of aluminum alloy material significantly extends the service life of the tank and simultaneously reduces maintenance costs.
|
Tanker Semi Trailer Parameters |
|
| SIZE | 11900*2500*3900(mm)( can be customized ) |
| Wheelbase | 7,500mm+1,310mm+1,310mm |
| Payload | 28T – 70 tons |
| Volume | 28000liter – 70000liter |
| Tanker body | 5mm or 6mm/Carbon steel plate/ Aluminum alloy |
| Walkway | Aluminum |
| Discharge vale | 4″ API Adaptor Valve or 3″ Spherical Valve |
| Bottom valve | 3″, 4″ Controlled by Pneumatic Block |
| Manhole | Diameter 500mm, 1-9 pieces with vent valve |
| Axles | 2 – 4 pcs 13 – 20 tons BPW or Fuwa Axles |
| Landing Leg | JOST E100 |
| Brake system | 6pcs T30/30 Brake Chambers, WABCO relay valve |
| Tool box | 1 piece, one crank, and one shaft head wrench |
| Handrail | Manual, Pneumatic |
| Main Beam | Q345 Carbon steel material |
| Suspenssion | Mechanical, Air, Bogie |
| Tire | 12R22.5, 315/80R22.5, 12.00R24 Triangle Brand |
| Fire extinguisher | 2 units per trailer |
| King Pin | JOST 2″ or 3.5 ” Bolting Type |
OUR FACTORY
SINOHENG Trailer Factory is an enterprise specializing in the production and sales of trailers, dedicated to providing customers with high-quality and high-performance trailer products. We use high-strength steel and optimized design to ensure that the products maintain high load-bearing capacity while being lightweight, meeting customers’ dual demands for transportation efficiency and cost control.
Our products are not only popular across the country but also exported in bulk to over 30 countries and regions in Southeast Asia, Africa, the Middle East, South America, etc., earning the trust of customers worldwide. Moreover, we offer comprehensive after-sales service to ensure you have no worries. Choosing SINOHENG means choosing quality, choosing professionalism, and choosing peace of mind.
