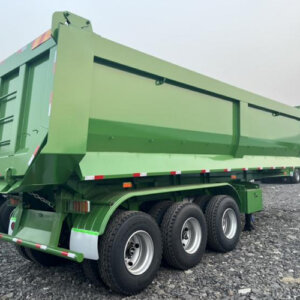

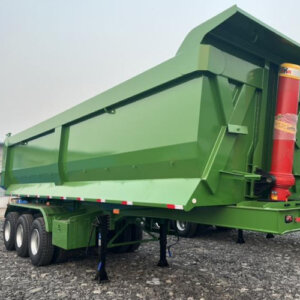

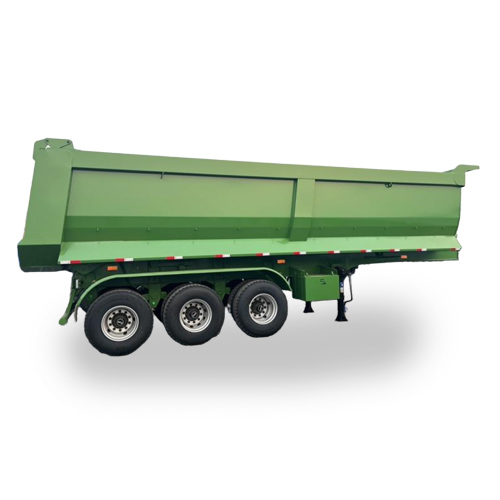

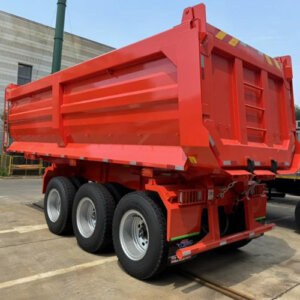

This 3 Axle 24 CBM Rear Dump Semi Trailer (front lifting system) is a heavy-duty transportation tool tailored for industries such as mining, building materials, and sand and gravel transportation. Made of high-strength steel and advanced lifting systems, it not only ensures efficient loading and unloading but also features a stable structure, safety, and reliability. It is an ideal choice for bulk material transportation.
Product advantages

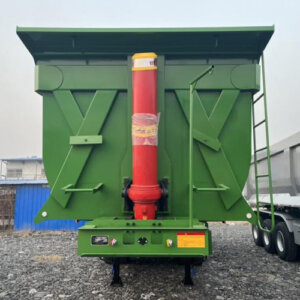

- The entire vehicle is equipped with the PUHUI 196-6180 front lifting hydraulic system, which ensures more stable lifting and faster unloading. It can significantly enhance loading and unloading efficiency and reduce operational risks, making it particularly suitable for frequent loading and unloading conditions.
- The main beam is made of Q700 high-strength steel and welded by automatic submerged arc welding technology. It features high strength and load-bearing capacity, effectively reducing structural fatigue and extending the vehicle’s service life. At the same time, the self-weight of the vehicle body is only about 8.7 tons, which is conducive to increasing the load capacity of a single transportation and reducing operating costs.
- The vehicle is 9.3 meters in length, with a scientifically distributed wheelbase (4510mm+1310mm+1310mm), a low center of gravity, and stable driving. Equipped with a 2-inch bolt-type saddle, it is compatible with most tractors, allowing users to flexibly allocate vehicle resources.
- It adopts a dual-pipeline air brake system +WABCO emergency relay valve, and is equipped with 4 T30/30 spring brake chambers and 2 T30 chambers. Even under high-load conditions, it ensures excellent braking performance and guarantees transportation safety.
- Linglong brand 12R22.5 tires are wear-resistant and pressure-resistant, suitable for complex road conditions. 28-ton manual outriggers, with strong load-bearing capacity and convenient operation; Standard equipped with steel mudguards, toolboxes, and spare tire racks to meet the needs of long-distance transportation. LED signal lights and reflective signs enhance the safety of night driving.
If you are looking for a stable, durable, efficient loading and unloading, and well-configured dump semi-trailer, this 24CBM front top and rear tipping truck will be your reliable assistant in your transportation business. Whether for domestic transportation or the export market, it can handle all kinds of complex working conditions and has an extremely high cost performance.
|
Trailer Parameters |
|
| Length | 9300mm |
| Width | 2,550mm |
| Height | 3350mm （1350mm） |
| Kingpin location | 1,020mm from the front face of the front bolster |
| Axle spacer | 4510mm+1,310mm+1,310mm |
| Landing gear location | 2,500mm behind the kingpin location |
| Payload | 40,000kg |
| Tare weight | Approx. 8700kg |
| G.V.W.R. | Approx. 48,700kg |
| Main beam | Heavy duty and extra durability designed; Opting for high tensile steel Q700, welding by automatic Submerged-Arc processes.
500mm Height “I” beam, Top Flange 12mm, width 140mm; Web 8/6mm; Bottom Flange 14mm, width 140mm.
|
| Platform | 4 mm plate |
| Side wall
|
3 mm plate
|
| Lifting system | Full set of PUHUI 196-6180 lifting system, front lifting. |
| Kingpin | 2” SAE Kingpin, bolted in type |
| Welding standard | All welding is to be done by a qualified welder per the applicable national standard |
| Painting | Shot blast at Standard SA 2.5 before application of primer, water paint top coat. Total DFT not less than 80um |
| Suspension | Mechanical suspension, leaf spring 6pcs |
| Axle | Mingyue brand 150×150 square beam axle, 3pcs*13 ton capacity |
| Brake system | Dual line pneumatic brake, SAE hose and connector |
| Brake chamber | 4 units T30/30 spring brake chambers, 2 units T30 brake chambers |
| Air tank | 40L, 2 pcs, China |
| Emergency relay valve | Wabco relay valve |
| Tire | Linglong brand, 12R22.5, 12 pcs. China |
| Rim | 9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China |
| Landing gear | 28T two-speed telescopic manual landing gear |
| Voltage | 24 Volt |
| Receptacle | 7-way socket SAE standard |
| Front marker lamp | White |
| Side marker lamp | White & Red |
| Rear lamp | Red |
| Turn signal lamp | Amber |
| Reflector | Per customer requirement |
| Mud guard | Steel mud guard |
| Spare wheel carriers | 1 pc |
| Tool box | 1 pc |
